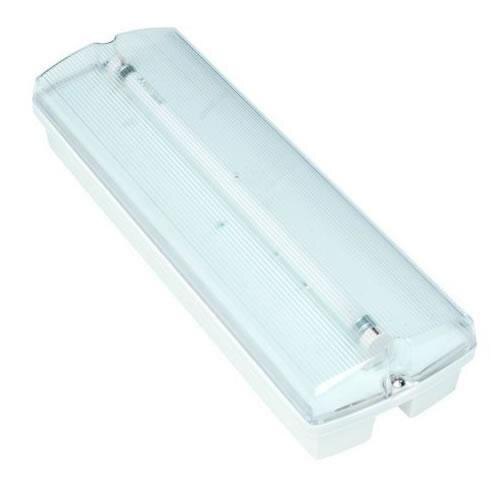

Emergency Bulkhead Light with Self-Test - CS8/ST
The CS8/ST is a low cost emergency bulkhead light with self-test functionality,
suitable for both internal and external applications. The self-test technology
enables regular checks of the status of the emergency lighting unit, sounding
an alarm and setting off a warning LED should there be any malfunction in
the unit. The CS8/ST units are manufactured from polycarbonate ABS construction
and are extremely durable, suitable for incorporation into emergency lighting systems complying with BS5266-1:2005.
Typical Applications
Typical applications for the CS8/ST economy bulkhead emergency light include
installations in student accommodation, offices, factories, hotels, pubs, warehouses,
small shops, sports halls, youth clubs etc.
- Maintained or non-maintained operation versions available
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 100 Lumens
- Built in self-test facility
- IP65 (Exterior use)
- Safelincs Exclusive 5 Year Warranty
- Hot-wire tested as defined by ICEL
- Fully complies to BS EN 60598-2-22
- Fresnel diffuser
- Supplied complete with lamp and battery
- Semi recessed flange available
- Universal legend available
Typical Applications
Typical applications for the CS8/ST economy bulkhead emergency light include
installations in student accommodation, offices, factories, hotels, pubs, warehouses,
small shops, sports halls, youth clubs etc. This is the technical data for the Emergency Bulkhead Light with Self-Test - CS8/ST.
| Lamp Type | 8W T5 |
|---|---|
| Power Consumption | Maintained: 20VA Non-maintained: 8VA |
| Battery Type | 2.4V 4Ah |
| Backup Duration | 3 Hours |
| Light Output | 100 Lumens |
| Dimensions (HxWxD) | 355x115x76mm |
Product Options
| Model | Product Code | Product Weight |
|---|---|---|
| Maintained | RL-CS8M/ST | 0.75 kg |
| Non-maintained | RL-CS8NM/ST | 0.75 kg |
Technical Data Sheets
The following technical data sheets are available for this product:
Q.Can the emergency lights with IP65 rating be fitted with emergency showers?
A.Yes, as this rating identifies that the unit is protected against low pressure jets from all directions - limited ingress permitted.
Pricing & Availability
| Model | Stock Levels | Prices |
|---|---|---|
|
Non-maintained Product Code: RL-CS8NM/ST |
In Stock
|
£72.99 inc VAT (£60.83 ex VAT) |
|
Maintained Product Code: RL-CS8M/ST |
In Stock
|
£89.99 inc VAT (£74.99 ex VAT) |
Questions? Ask our product specialist...
If you have a technical questions or a query relating to this product why not contact our product specialist. Each of our specialists have specific training targeted towards their product area.
