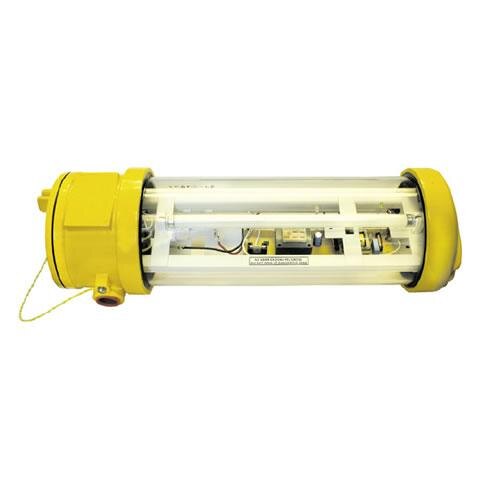

Anti-Explosive Emergency Lighting Bulkhead - AE8
The AE8 anti-explosive lighting units have been constructed from tough aluminium to create the body of the unit. The units have been finished in a RAL 1003 yellow paint and have been fitted with a strengthened polycarbonate lamp diffuser. The AEB is not only totally protected against dust particles but it is also water resistant. The AE8 units are certified by CENELEC EN 500 14/18 and comply to EN 60598-1 and EN 60598-2-22.
- Non-maintained units
- Switchable emergency lighting function
- Backup duration: 3 hours
- Light output: 150 Lumens
- IP66 (Exterior and volatile environments)
- Suitable for 0, 1 and 2 category environments
- 3 Year Warranty
- Hot-wire tested as defined by ICEL
- Charge indication LED
- Supplied complete with lamp and battery
Typical Applications
Typical applications for the AE8 anti-explosive bulkhead emergency light include installations in chemical labs, petrochemical and chemical industry, the food industry, machine and apparatus construction etc. This is the technical data for the Anti-Explosive Emergency Lighting Bulkhead - AE8.
| Product Code | RL-AE8NM/150/3 |
|---|---|
| Weight | 3.5kg |
| Lamp Type | 8W Re-inforced Polycarbonate Diffuser |
| Battery Type | 3.6V 4Ah NiMH |
| Backup Duration | 3 Hours |
| Light Output | 150 Lumens |
| Humidity Range | Up to 95% Relative Humidity |
| Operating Temperature | -20°C to 40°C |
| IP Rating | IP66 |
Technical Data Sheets
The following technical data sheets are available for this product:
Pricing & Availability
| Model | Stock Levels | Prices | Weight |
|---|---|---|---|
|
Anti-Explosive Emergency Lighting Bulkhead - AE8 Product Code: RL-AE8NM/150/3 |
In Stock
|
£437.49 ex VAT (£524.99 inc VAT) |
3.5kg |
